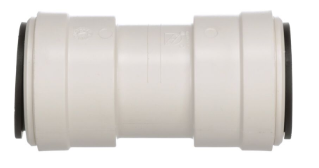

Watts Quick Connect Coupling

Watts

$9.99
Unit price per

Options

This 1 inch CTS AquaLock^™ plastic coupling works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. This fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.

25-year limited warranty
No tools required for installation or removal
Works with copper, CPVC, PEX, and CTS rated pipe
Can be used for hot and cold water applications, including behind the wall applications
Rotates under pressure after installed for high flexibility during installation
Zero-leak connections

Specifications
Brand	Watts
Brass Insert	No
Buy American Act Compliant	NO
EAN	098268346640
Finish	Plastic
Fitting Name	Coupling
Inlet Connection Size	1 IN
Inlet Connection Type	Push to connect
Inlet Material	Polysulfone
Lead Free	YES
Material	Polysulfone
Maximum Working Pressure-BAR	17.25
Maximum Working Pressure-PSI	250
Maximum Working Temperature-Celsius	24.00
Maximum Working Temperature-Fahrenheit	75
Minimum Temperature - Celsius	0.56
Minimum Temperature-Fahrenheit	33
Outer Diameter	Does Not Apply To Product
Outlet Connection Size	1 IN
Outlet Connection Type	Push to connect
Outlet Material	Polysulfone
Outlet Thread Type	Does Not Apply To Product
Part Number	0959299
Series	Coupling 3515
Suitable for Gas Service	No
